KOR / Trilogy / 2016 / Black / Effect

24% OFF

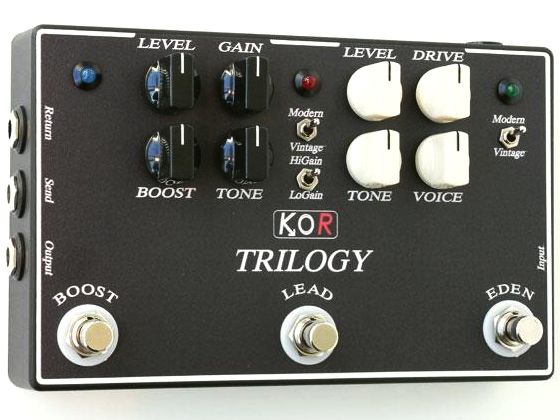

Kor Trilogy 2016 Black
KOR Trilogy is a Triple Overdrive pedal with the channel Edendrive + channel Distortion ( Leadstar or DP9 with selectable HiGain and LoGain ) + a cleanboost with effects loop!
Each channel has two modes of operation,Modern or Vintage, for a variety of sounds ranging from DUMBLE to TWEED to BLACKFACE all the way to those MARSHALL HI -GAIN sounds.
All 3 channels are completely independent and adds up all in a single stomp box, to get all the classic sounds guitarist needed especially in the Live situations!
SECTION 1 - EDENDRIVE (right - white knobs )
DRIVE - Controls the gain of the input stage .
VOICE - Check in gain of a given curve of the mid-frequency , it is so interactive with the GAIN control determines the VOICE of your instrument , the higher the level of VOICE is up, the sound becomes more present and aggressive.
TONE - Controls the level of high frequencies.
LEVEL - Controls the volume level of output .
SWITCH 1 - This 2-position control selects the type of overdrive , is interactive with the GAIN control , the more the gain is taller than the differences between the two positions of the switch will be evident , even in the volume of output :
Modern - Overdrive based on the famous DUMBLE OVERDRIVE SPECIAL .
Vintage - Overdrive very warm and dynamic , useful to overdrive the input of your amplifier, plays a sound comparable to the glorious vintage Fender Tweed .
Section 2 - LEADSTAR (central - black knobs )
A combination of an Overdrive and Distortion of upper harmonics, this is the concept that underlies the Leadstar, warm sound and dynamic but that sings in single notes as a distortion. Try using the volume control on your guitar, you will go from a clean sound to a saturated sound like a tube amp.
GAIN - Controls the gain of the input stage
TONE - Controls the level of high frequencies.
LEVEL - Controls the volume level of output .
SWITCH 2 - This 2-position control selects the type of distortion, is interactive with the GAIN control, the more the gain is increased the differences between the two positions of the switch will be evident, even in the volume of output .
Modern - Modern and aggressive distortion rich in harmonics, sounds great for LEAD .
Vintage - Dynamic Overdrive suited to Rock / Blues, useful to saturate the input of your tube amp , playing a sound comparable to the glorious vintage MARSHALL .
SWITCH 3 - This control sets the gain of the lead channel on its different sets .
High - High gain, for modern sounds and aggressive.
Low - Low gain for sounds more ' dynamic and blues.
Section 3 - BOOST ( left - black knob )
BOOST - Controls the output level (+18 dB) Boost driven by pedalswitch to the left, and placed after the Overdrive / Distortion and serves to increase the volume , for example, during a solo. Its operation is independent and completely linear, ie does not add or distort the sound of your guitar.
This effect send is placed before the boost is activated when you connect a jack to send and only works when the BOOST active , allowing you to simultaneously activate other effects .
Send - Effect send , connect it to the input of other effects ( such as a delay) that will be activated at the same time to BOOST when you want to turn up the volume for a solo. Return - Return effects, plug the return of the effects
It's possible to divert the output signal of your TRILOGY between the two outputs Output ( LED off) and Send (LED on ) to select for example two amps or two chains of different effects. In this case the Boost circuit is automatically cut and the circuit is completely true bypass . ( In this configuration, you should not connect anything to the outlet return) .
ON / OFF - The pedal is TrueBypass , that is, when it is off your guitar signal passes directly between the two connectors for input and output , not deteriorating the sound when the pedal is not used.
INPUT - The pedal turns on only if you enter the input jack , located on the right.
POWER - A 9 -volt DC battery accessible by unscrewing the 6 screws on the back cover, or via external power supply 9 to 15 volts, negative center .
If you leave the plug of the external power switched on, the battery is not included .
